BB-266 Swing Axle / Straight Axle oil deflector washer

£1.44 Including Vat £1.20 Without Vat

In stock

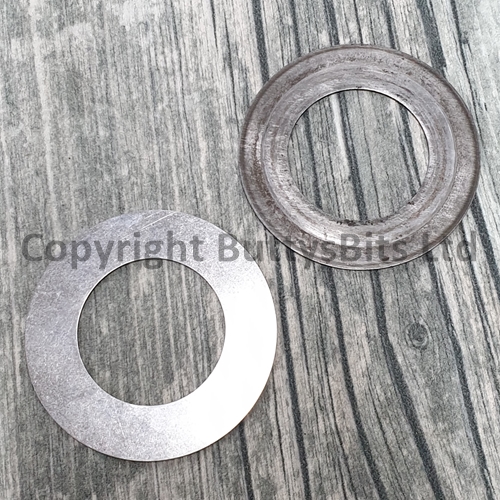

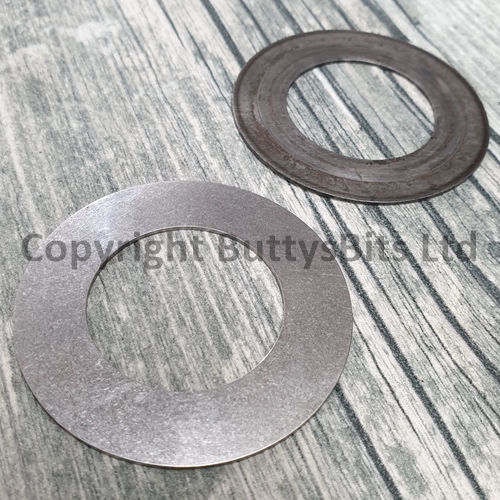

Swing Axle / Straight axle Bearing Hub oil throw back washer , made in stainless steel . Originals are usually beaten up and bent so no longer doing what they was intended for .
These fit inside the bearing housing between the casting and the hub seal , so any oil leaking past the seal will not enter the brake shoe area . Its the second barrier after the rubber hub seal .

For vehicles running the cast bearing housings .
2 x per vehicle required , sale is for 1 washer .

Centre hole is 30mm in Diameter .

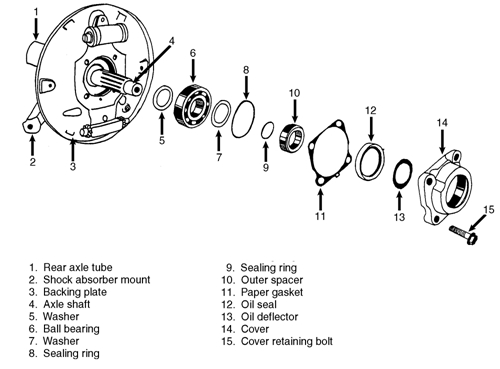

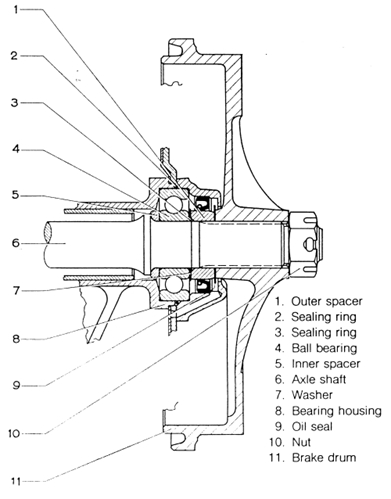

In the diagrams it is part number 10 and 13 in the other image .

Additional information

Weight .015 kg
Dimensions 70 × 70 × 3 mm
